H13 vs DB6: Choosing the Right Hot Work Die Steel for Forging, Die Casting & Extrusion
By Starship Alloys | Forged & Rolled Tool Steel, Stainless Steel, and Special Alloys
If you are a tool room engineer, die designer, or procurement manager in India, you have almost certainly faced this question: Should I use H13 or DB6 for my next die?
Both are hot work tool steels. Both are widely available in India. Both have strong reputations. But they are fundamentally different materials designed for different performance priorities — and choosing the wrong one can mean the difference between a die that runs for 100,000 cycles and one that cracks after 10,000.
At Starship Alloys, we supply both H13 and DB6 forged bars. In this detailed comparison, we will help you make an informed decision based on your specific application, working conditions, and budget.
The Fundamental Difference: What Each Steel is Designed For
Before diving into numbers, it helps to understand the core design philosophy behind each grade.
H13 (DIN 1.2344 / AISI H13 / SKD61) is a chromium-molybdenum-vanadium hot work steel. It belongs to the 5% chromium family. Its alloy design prioritises hot hardness, thermal fatigue resistance, and the ability to maintain strength at elevated temperatures. H13 is engineered for applications where the tool contacts very hot material — molten aluminium at 660°C, extruded billets at 500°C, or hot forging stock at 900-1200°C — and must resist the constant heating-cooling cycles that cause heat checking (surface cracking from thermal fatigue).
DB6 (DIN 1.2714 / AISI L6 / SKT4) is a nickel-chromium-molybdenum-vanadium hot work steel. Its alloy design prioritises toughness, impact resistance, and uniform hardenability across large sections. DB6 is engineered for applications where the tool must absorb severe mechanical shock — heavy hammer blows, high tonnage press loads, and repeated impact forces — without cracking or chipping.
In simple terms: H13 resists heat. DB6 resists impact. Most selection decisions follow from this fundamental distinction.
What chemistry tells us:
H13 has roughly four times the chromium content of DB6 (5% vs 1.2%). This high chromium level is responsible for H13's superior resistance to oxidation, heat checking, and softening at elevated temperatures. H13 also carries significantly more vanadium (1% vs 0.1%) and molybdenum (1.4% vs 0.5%), both of which form hard, stable carbides that resist coarsening at high temperatures and contribute to wear resistance and hot hardness.
DB6, on the other hand, contains 1.5-1.8% nickel — an element absent from H13. Nickel is the key to DB6's exceptional toughness and impact resistance. It strengthens the matrix, improves hardenability (especially critical for large die blocks), and prevents brittleness at working hardness levels. DB6 also has higher carbon (0.55% vs 0.37%), which contributes to higher hardness and strength in the pre-hardened condition.
Mechanical Properties Comparison
The property differences become clear when you compare the two grades at their typical working conditions:
Hardness Range:
H13: 38-54 HRC (typically 44-48 HRC for die casting, 40-46 HRC for forging)
DB6: 38-44 HRC (typically supplied pre-hardened at 360-430 BHN / 39-44 HRC)
Tensile Strength:
H13 at 44 HRC: ~1400-1550 MPa
DB6 at 42 HRC: ~1300-1400 MPa
Impact Toughness (un-notched Charpy):
H13 at 44 HRC: ~15-25 J
DB6 at 42 HRC: ~25-40 J
Thermal Conductivity:
H13: 24.3 W/m·K at 20°C
DB6: 35.0-39.0 W/m·K at 20°C
Key takeaways from the numbers:
DB6 delivers 50-70% higher impact toughness than H13 at comparable hardness levels. This makes it significantly more resistant to sudden fracture under shock loading — exactly what you need when a 5-tonne hammer strikes a die thousands of times per shift.
H13 can be heat-treated to substantially higher hardness levels (up to 52-54 HRC) while still maintaining acceptable toughness. DB6 is rarely used above 44 HRC because its toughness drops sharply at higher hardness.
DB6 has notably higher thermal conductivity (35-39 vs 24 W/m·K). This means heat dissipates faster through a DB6 die, which can reduce surface temperature buildup during forging operations.
Hot Hardness: Where H13 Dominates
This is the single most important differentiator in many applications.
"Hot hardness" refers to a steel's ability to maintain its working hardness when the tool temperature rises during operation. All steels soften as temperature increases — the question is how quickly and how much.
H13 maintains useful hardness up to approximately 540°C in continuous service. At 500°C, H13 retains approximately 85-90% of its room temperature hardness. This resistance to softening comes from the stable Mo₂C and VC carbides that form during tempering and remain coherent at elevated temperatures.
DB6 begins to soften noticeably above 400°C. At 500°C, DB6 retains only approximately 70-75% of its room temperature hardness. By 550°C, it has lost a significant portion of its working hardness.
What this means in practice:
In aluminium die casting, the die surface temperature regularly exceeds 500°C when it is in contact with molten aluminium at 660°C. H13 maintains its hardness and resists deformation at these temperatures. DB6 would soften, deform, and fail prematurely.
In hot forging, the picture is more nuanced. The die surface temperature during a typical forging stroke might reach 300-450°C, depending on the workpiece temperature, contact time, and lubrication. For many forging operations — particularly press forging with moderate cycle times — DB6 performs excellently because the surface temperature stays within its comfort zone. But for high-speed operations or long contact times where surface temperatures push above 450°C, H13 is the safer choice.
Thermal Fatigue Resistance (Heat Checking)

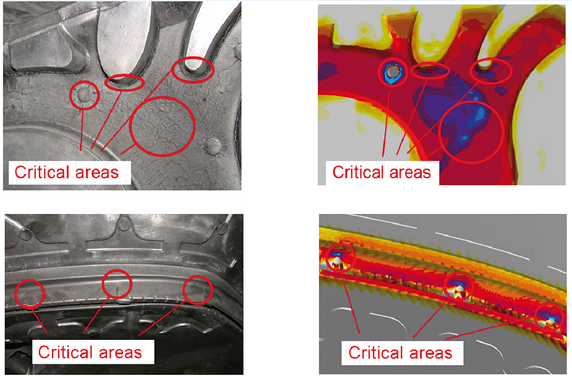

Heat checking — the network of fine surface cracks that develops on die surfaces after repeated heating-cooling cycles — is one of the primary failure modes for hot work dies.
H13 is significantly superior in resisting heat checking. Its high chromium content (5%) provides a stable oxide layer, and its secondary hardening carbides (VC, Mo₂C) maintain the surface hardness that resists crack initiation. The lower thermal conductivity of H13, while sometimes seen as a disadvantage, actually means lower thermal gradients in the surface layer during rapid temperature changes — and lower thermal stress.
DB6 has moderate thermal fatigue resistance. Its higher thermal conductivity means heat penetrates deeper into the die during each cycle, which can be beneficial for overall heat dissipation but creates different thermal stress patterns. DB6 dies are more likely to develop heat checking earlier than H13 dies under the same thermal cycling conditions.
This is why H13 is the universal choice for aluminium die casting — no other common hot work steel matches its combination of hot hardness and thermal fatigue resistance for this application.
Toughness and Impact Resistance: Where DB6 Excels
If hot hardness is H13's domain, toughness is where DB6 is the undisputed champion.
DB6 delivers impact toughness values 50-70% higher than H13 at comparable hardness. This is a direct consequence of its nickel-chromium alloy design and lower vanadium content (fewer hard carbides means a more homogeneous, tougher matrix).
Why this matters for forging dies:
When a 3-tonne hammer strikes a hot billet sitting on a forging die, the die experiences enormous instantaneous stress — not just compressive load, but also shock waves, dynamic stress concentrations at die radii, and tensile stresses in thin sections. A die material that is hard but brittle will crack catastrophically. A die material with superior toughness absorbs the shock and continues operating.
This is why DB6 (DIN 2714) has been the standard die block material for closed die forging in India for decades. It is supplied pre-hardened to 360-430 BHN (39-44 HRC), which provides an excellent balance of strength and impact resistance for hammer and press forging dies.
Heat Treatment Comparison
The heat treatment procedures for H13 and DB6 are different, reflecting their different alloy designs:
H13 Heat Treatment:
Annealing: 845-870°C, furnace cool at max 20°C/hr → 187-229 HB
Hardening: Preheat to 815-870°C, austenitise at 1010-1040°C, air quench
Tempering: Double or triple temper at 540-620°C (secondary hardening at ~500-525°C)
Working hardness: 44-52 HRC, depending on application
DB6 Heat Treatment:
Annealing: 740-760°C, furnace cool at max 10°C/hr to 600°C, then air → max 240 HB
Hardening: Preheat to 650°C, austenitise at 900-950°C, oil quench (do not normalise — DB6 is air-hardening)
Tempering: Double temper at 450-650°C, depending on desired hardness
Working hardness: 39-44 HRC (standard pre-hardened supply)
Key differences in heat treatment:
H13 is primarily air-hardening and exhibits secondary hardening during tempering (hardness peaks at ~500-525°C). This secondary hardening response is a significant advantage — it means H13 can be tempered at high temperatures for excellent toughness while still maintaining high hardness.
DB6 is oil-quenched and should never be normalised due to its air-hardening tendency. It is most commonly supplied in a pre-hardened condition (quenched and double-tempered to 360-430 BHN), ready for direct machining into dies without requiring further heat treatment by the end user. This is a practical advantage — it simplifies the supply chain and reduces the risk of heat treatment errors by the die maker.
Machinability Comparison
Both grades offer good machinability, but there are differences:
H13 in annealed condition (187-229 HB): Machinability is rated at approximately 75% of the W-group baseline. EDM (electrical discharge machining) performance is excellent. H13 is typically supplied soft-annealed, machined to shape, and then hardened and tempered.
DB6 in pre-hardened condition (360-430 BHN): Machinability is rated at approximately 90% of the W-group baseline, despite being supplied at a much higher hardness. The nickel content in DB6 contributes to better chip formation and smoother cutting. Since DB6 is supplied pre-hardened, dies are machined to final shape in the hardened condition — no subsequent heat treatment is required.
The pre-hardened supply condition of DB6 is a significant practical advantage for die shops. It eliminates the distortion risk associated with post-machining heat treatment, reduces lead time, and simplifies the manufacturing process.
Application Guide: When to Choose H13 vs DB6
Choose H13 When:
Aluminium Die Casting: This is H13's flagship application. Die casting dies, shot sleeves, core pins, and ejector pins all demand H13's thermal fatigue resistance and hot hardness. There is no real alternative to H13 for pressure die casting of aluminium, zinc, or magnesium alloys. ESR-grade H13 is recommended for critical die casting dies.
Aluminium Extrusion: Extrusion dies, mandrels, dummy blocks, and container liners. Sustained temperatures of 450-520°C and abrasive metal flow require H13's hot hardness and wear resistance.
Hot Forging (where thermal fatigue is the primary concern): For forging dies used in high-speed operations, with thin sections, complex geometries, or long contact times where surface temperatures regularly exceed 450°C — H13 provides better die life.
Plastic Injection Moulds (large, high-polish): Where good polishability and high clamping pressure resistance are needed. ESR H13 is preferred for moulds requiring an optical surface finish.
Hot Shear Blades: For continuous cutting of steel and non-ferrous metals at elevated temperatures, where edge retention at high temperatures is critical.
Choose DB6 When:
Hammer Forging Dies: DB6 is the default choice for hammer forging dies across India — and for good reason. The repeated high-energy impacts from drop hammers, counterblow hammers, and mechanical hammers demand the superior toughness that only DB6 can provide at working hardness levels.
Heavy Press Forging Dies: Large forging dies for press forging of automotive components (crankshafts, connecting rods, gears, axle beams) where die sizes are large (requiring good hardenability across the full section) and impact loading is significant.
Die Holders and Bolsters: The support tooling that holds and backs forging dies. These components need toughness more than hot hardness, and DB6 in pre-hardened condition is ideal.
Hot Forming Dies (moderate temperature): For operations where the working surface temperature stays below 400-450°C and impact resistance is more critical than thermal fatigue resistance.
Large Die Blocks: DB6's nickel content provides superior hardenability, meaning it achieves uniform hardness through large cross-sections. For die blocks exceeding 400mm in thickness, DB6 often provides more uniform properties than H13.
When Either Grade Could Work:
Press forging dies with moderate thermal cycling: If your forging operation involves moderate impact loads and moderate thermal cycling, both grades may perform acceptably. In these cases, the decision often comes down to cost (DB6 is generally less expensive) and supply condition preference (DB6 pre-hardened vs H13 requiring heat treatment after machining).
Cost Comparison
DB6 is generally 15-25% less expensive than H13 on a per-kilogram basis. However, the total cost of ownership depends on more than just material price:
DB6 total cost advantages:
Lower material cost per kg
Supplied pre-hardened — no post-machining heat treatment cost
No risk of heat treatment distortion or cracking
Faster delivery to production — machine and use
H13 total cost advantages:
Superior die life in high-temperature applications (die casting, extrusion)
Longer intervals between die replacement in thermal fatigue environments
Higher achievable hardness for better wear resistance where needed
The right comparison is not price per kg, but cost per component produced. In aluminium die casting, for example, an H13 die that costs 20% more but lasts three times longer than a hypothetical DB6 die would be dramatically cheaper per casting produced. Conversely, for a hammer forging die where DB6 provides adequate die life at lower cost, spending more on H13 would be wasteful.
Quick Decision Matrix
Both Grades Available at Starship Alloys
At Starship Alloys, we manufacture and supply both H13 and DB6 in forged round bars and flat bars. We understand that choosing between these grades is not always straightforward — and we are happy to discuss your specific application to help you make the right selection.
H13 Supply:
Forged Round Bars: 80 mm to 400 mm diameter
Forged Flat Bars: 80mm × 80mm to 550mm × 205mm
Supply condition: Annealed (≤229 HB) or pre-hardened to specification
DB6 Supply:
Forged Round Bars: 80 mm to 505 mm diameter
Forged Flat Bars: 80mm × 80mm to 550 mm × 305 mm
Supply condition: Pre-hardened (360-430 BHN) or annealed
Quality Assurance: Both grades are manufactured with complete process control — melting (EIF + LRF/VD), forging with controlled reduction ratio, heat treatment, and comprehensive testing at NABL-approved laboratories. Every batch ships with full test certificates covering chemical composition, mechanical properties, hardness, and ultrasonic examination.
Get Expert Advice and a Quote
Not sure which grade is right for your application? Contact us with your die drawing or specifications and our team will recommend the optimal material choice.
Phone: +91 9163 15 0171 | +91 98317 404 71 Email: mail@starshipalloys.com WhatsApp: +91 9163 15 0171 Visit: www.starshipalloys.com
Head Office: 190, Girish Ghosh Road, Belurmath, Howrah, West Bengal – 711202, India
Starship Alloys is a Howrah-based manufacturer and supplier of forged and rolled stainless steel, tool & die steel, and special alloys. We serve clients across India with custom-manufactured steel products backed by NABL-approved testing.
Related Reading:
Comments
